Covington 12″ Variable Speed Disc Grinder / Beveler

Product Description

Shape, bevel and polish like a pro! The Covington 12″ Beveler/Grinder offers incredible versatility for cold-working glass. From shaping large surfaces, to grinding, shaping and polishing small pieces, this work-horse tool can be equipped with accessories to tackle any job.

A unique water sleeve allows water to come up through the center shaft and disperse from the middle of the diamond disk, plus dual overhead watersupply can be precision aligned, making it simple to get the proper flow of water where you need it. A durable aluminum water manifold controls the flow of water. Included with the grinder you receive a solid brass center plug to use during polishing when a central water source is not desired.

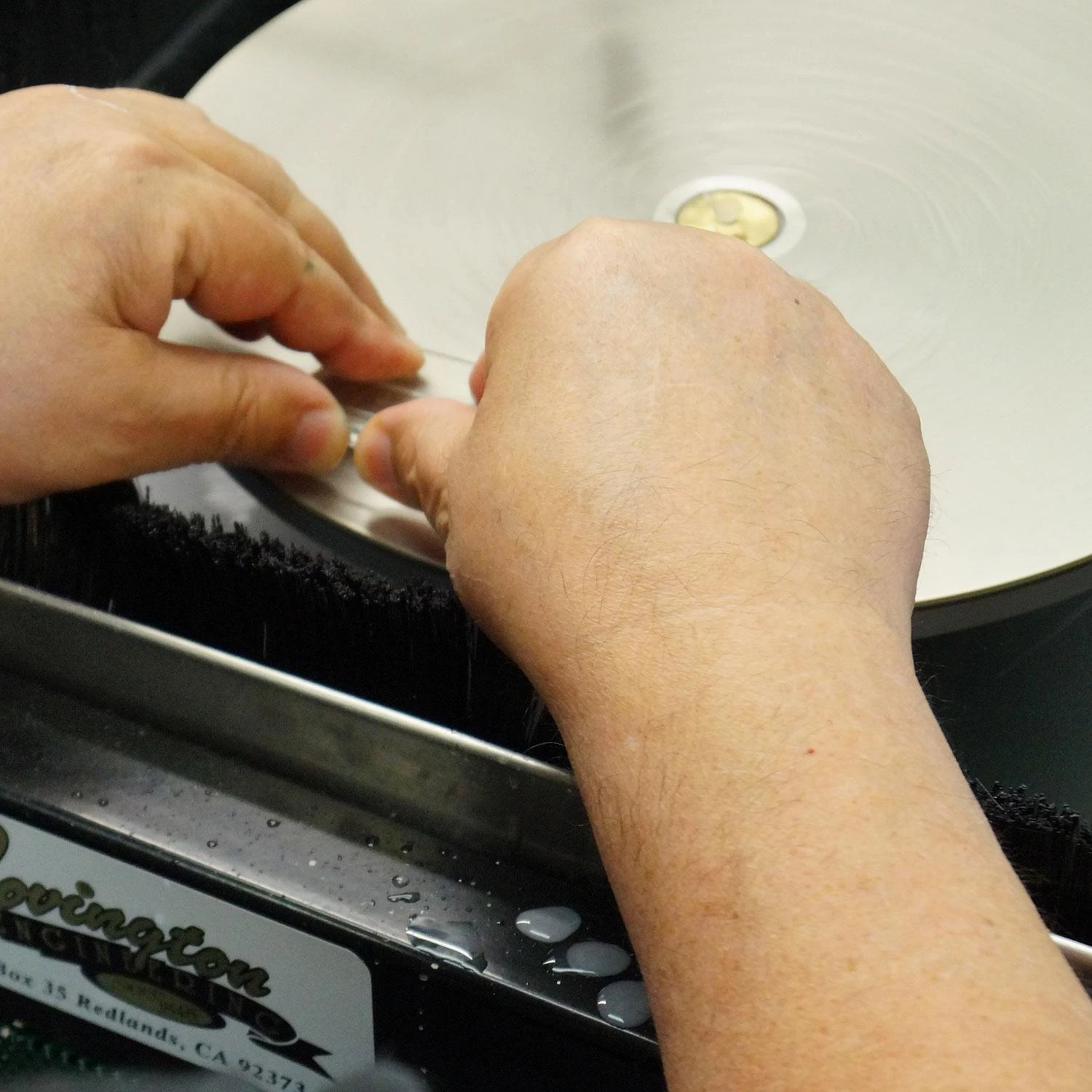

Easy to change magnetic discs allow you to progress from rough shaping to final polishing seamlessly. Designed to center over the brass center plug quickly, for fast changes, you’ll also appreciate that the brass plug remains below the disc surface. The 12″ flat plate is precision ground, then mounted to the motor shaft on bearings that are spaced 11″ apart for exceptional rigidity and stability. The female shaft accepts a variety of 5/8″-11RH male fitting diamond discs and diamond accessories. An optional double-ended male fitting is also available for female thread fitting accessories. The brush edges allow large projects to pass unobstructed while containing spray.

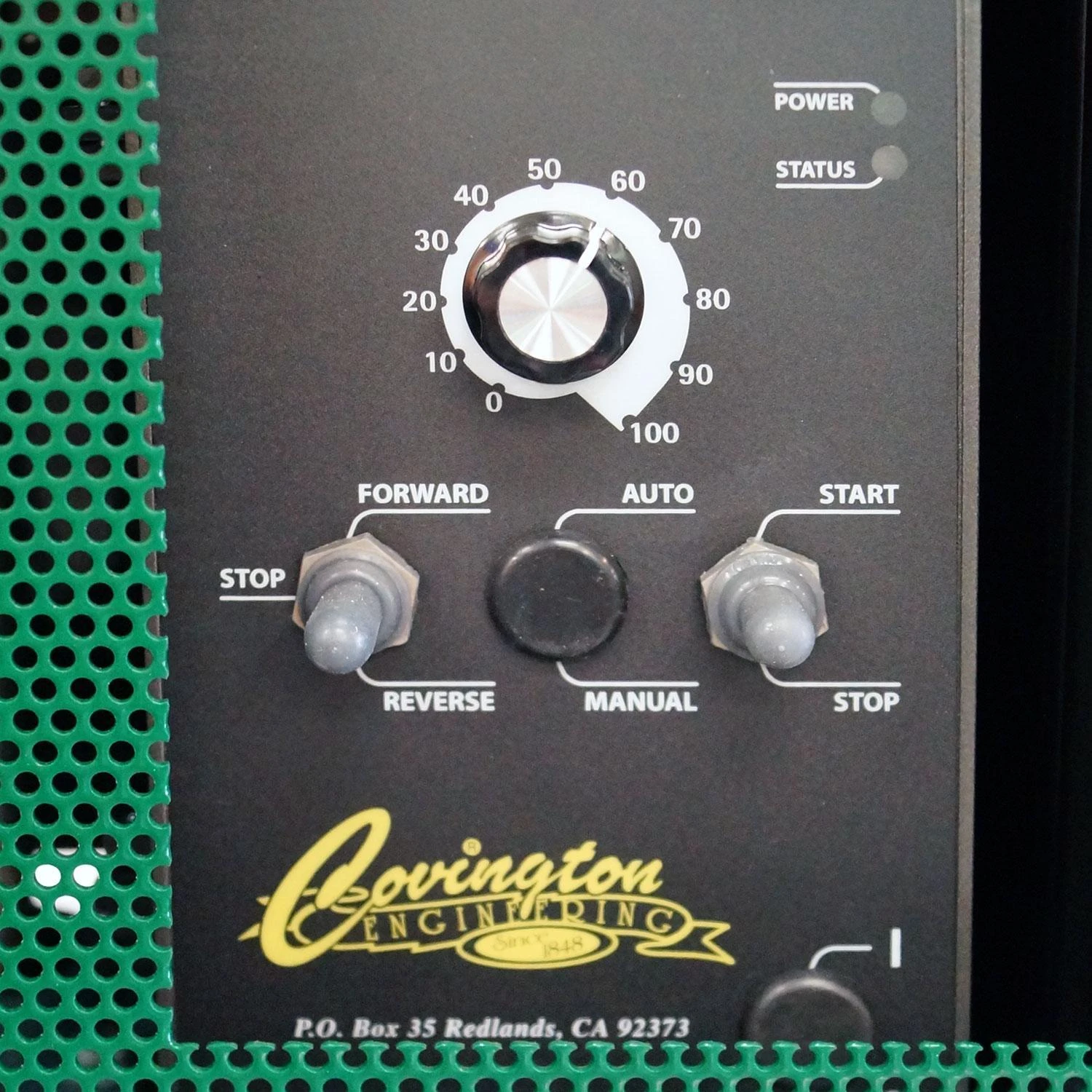

Driven by a 1hp, 3 phase motor with variable speed control – even the toughest jobs won’t bog this motor down. Variable speed control from 200 – 1000 rpm provides a wide working range ideal for all your grinding and polishing processes. Reversible motor direction for clockwise or counter-clockwise rotation.

The rugged welded steel chassis and removable side panels have heavy-duty powder coating for construction that lasts. The wash-down motor is designed specifically for use in wet environments. A 1″ stainless steel shaft and stainless steel catch pan complete the water-friendly design for longevity and safe operation. Removable side panels make it easy to clean and maintain this unit.

Discs and accessories sold separately. Runs on 120v 15amp. 1 year manufacturer warranty excluding catch pan.

This grinder is available to be shipped via truck only – call or email for a freight quote.

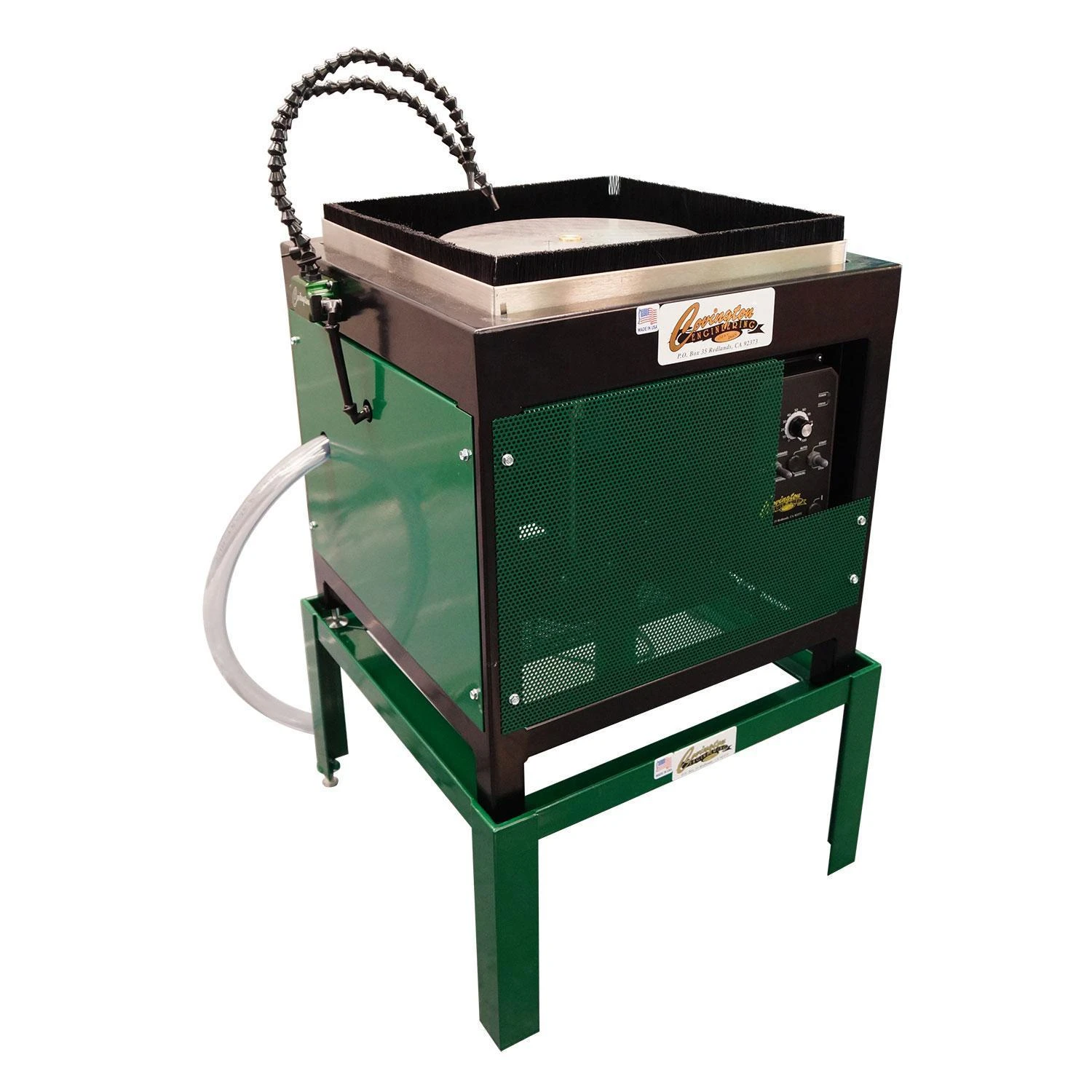

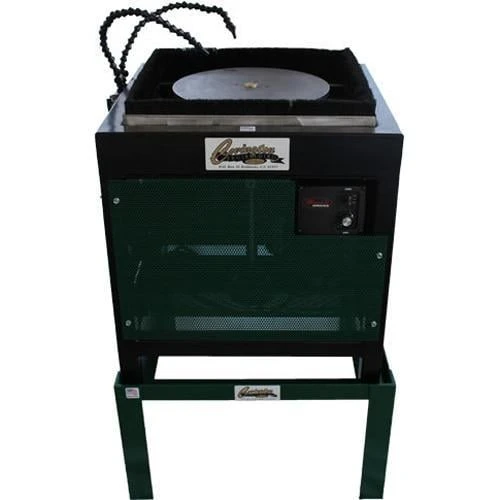

Additional images show grinder on optional stand, sold separately.

Delphi Tip: Keep your grinder in top condition. Always remove magnetic discs and wipe down the disc base after each use. A light coating of WD-40 or another light machine oil can be applied to protect the disc base.

Supplies are limited. Order early for best selection. All sales of clearance items are final.

Product Features

• Powerful 1hp, 3 phase motor runs strong and smooth even under load
• Variable speed operation from 200 – 1000 rpm is ideal for all your grinding and polishing processes
• Continuous flow central cooling keeps discs flushed
• Rugged construction was designed for wet environments
• Easy-change magnetic disc installation
• Runs on standard 120v 15amp service
• Recommended by Artist and Instructor Kent Lauer
